[F6DZP]

Woooh!
Beautiful sun above the see!
I wish to spend some days there.

73
Jean Pierre F6DZP

[F6DZP]

12 April 19h13 UTC / 21h13 local. SR1300 Feq 2369 MHz

6mn25 good TS without any cut


[G4KLB]

Fantastic results today.
My recorded live video is on https://www.youtube.com/watch?v=61GTGTOa8AE
Will upload to BATC when I can do a good flv conversion.

[F6DZP]

My result during this fantastic contact with Koichi Wakata.


And the 5mn42s of video:
http://vivadatv.org/images/Lire%20HamTV.html

Jean Pierre F6DZP

[G4KLB]

This is the data from the pass when we had video.
Time is local in UK

[vk6mj]


I am pleased to see the HAMTV tx back on again. This pass was a 40 degree elevation giving 5 minutes of video. Pleased to have the chance to fine tune the station once again. Regards Martin VK6MJ

[EI9FHB]

Tutioune During Actual Test Signal small.jpg (406.7 Kio) Vu 54595 fois

Here is my standard Tutioune Settings I use during each pass. The main things to note are AGC post nyquist =4 for
wifi Interference supression, Baseband Gain 10dB with Auto Ticked, FEC =1/2 only ticked, and ISS ticked. You can see a valid signal for this pass.

[EI9FHB]

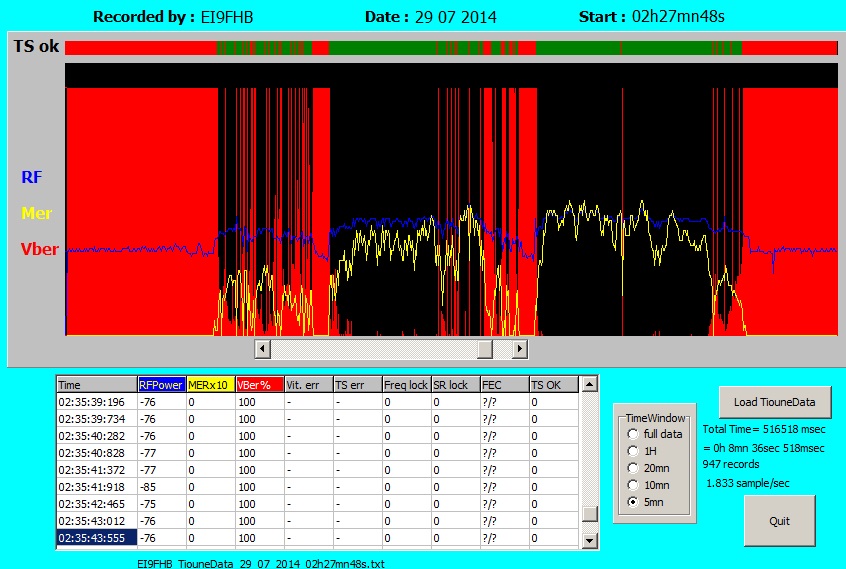

29 July local 229am 10 Deg Max 233 51 Deg 236 10 Deg end.jpg (155.95 Kio) Vu 54595 fois

I will now include every pass I received with data. My location is temporary. There are trees and mountains in the way of the signal. In 3 weeks I will move location to a better location, with no trees or mountains. I will email F6DZP the data files directly.

All times are local. (UTC+1:00)
For this pass
29 July
02:29:55 10 Degree Elevation
02:33:11 51 Degree Max Elevation
02:36:28 10 Degree Elevation

[EI9FHB]

29 July local 409am.jpg (157.96 Kio) Vu 54595 fois

All times are local. (UTC+1:00)
For this pass
29 July
04:06:25 10 Degree Elevation
04:09:45 66 Degree Max Elevation
04:13:06 10 Degree Elevation

[EI9FHB]

29 July local 546am.jpg (154.12 Kio) Vu 54595 fois

All times are local. (UTC+1:00)
For this pass
29 July
05:43:09 10 Degree Elevation
05:46:13 33 Degree Max Elevation
05:49:16 10 Degree Elevation
