Re: ISS HamTV Blank transmission report

Messagede vk6mj » Lun 7 Avr 2014 07:46

WOW !!
8 minutes of continuous video lock. Yes the ISS seems to be flying backward giving early reception on approach. I did get broken video almost to the horizon when it was leaving and heading away.

73 from a very happy Martin
Fichiers joints
2,395GHz spectrum24.jpg
2,395GHz spectrum24.jpg (175.68 Kio) Vu 8365 fois
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: ISS HamTV Blank transmission report

Messagede i0kpt » Lun 7 Avr 2014 12:01

Hi Martin,
this is really a wonderful result!! Congratulations!! Could you remind me which is your setup (antenna size, rotator, tracking SW, any Sun noise measurement, etc.).

Best 73

Piero, I0KPT
i0kpt

Messages: 5
Inscription: 29 Mar 2013

Re: ISS HamTV Blank transmission report

Messagede vk6mj » Lun 7 Avr 2014 12:39

Hi Piero

Thankyou for your kind comments.

My setup is :

1.2 mtr prime focus dish
homebrew patch antenna (LHCP)
Kuhne 25 TM LNC
Yaesu G-5500 combo az/el rotator
Yaesu GS-232b controller
SatPC32 tracking software
S2-1600 HDTV tuner card
Tutioune Software V0.5b ISS
Windows 7 32 bit OS
Intel Core i3-4130 CPU @ 3.40 GHz
vcam
Adobe Flash Media Live Encoder 3.2

I think that is about everything.

The best frequencies for my station are 2.395 GHz and 2.369 GHz as these are both free from QRM. It would seem from this pass that config 5 performs best so far. 2.422 GHz and 2.437 suffer badly from local wifi interference.

This pass was very high and nearly directly overhead. I was surprised to receive the signal so early in the pass.

Good luck with your testing.

73 Martin VK6MJ
Fichiers joints
S Band config2a.jpg
S Band config2a.jpg (84.96 Kio) Vu 8346 fois
Dernière édition par vk6mj le Mer 9 Avr 2014 11:22, édité 2 fois.
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: ISS HamTV Blank transmission report

Messagede vk6mj » Mar 8 Avr 2014 06:52

This was a lower pass at max elevation of 43 degrees. 7 minutes of video lock. The ISS is once again flying backwards according to the radiation pattern. Video lock (AOT) occurred at 2 degrees elevation on approach and LOT at 21.5 degrees heading away.
Fichiers joints
2,369GHz spectrum25.jpg
2,369GHz spectrum25.jpg (174.99 Kio) Vu 8346 fois
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: ISS HamTV Blank transmission report

Messagede G4KLB » Mer 9 Avr 2014 20:23

Am also getting better results at start of pass now
Fichiers joints
2394 1300 94.png
2394 1300 94.png (42.49 Kio) Vu 8292 fois
G4KLB

Messages: 28
Inscription: 07 Juin 2011

Re: ISS HamTV Blank transmission report

Messagede vk6mj » Mer 9 Avr 2014 22:50

2,369GHz spectrum27.jpg
2,369GHz spectrum27.jpg (186.48 Kio) Vu 8291 fois
8 minutes of video lock with a slight dropout as the ISS went behind trees to my NW.
First video lock was at 2.5 degrees elevation. Max Elevation at 83 degrees.
Fichiers joints
Dernière édition par vk6mj le Jeu 10 Avr 2014 00:47, édité 1 fois.
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: ISS HamTV Blank transmission report

Messagede vk6mj » Mer 9 Avr 2014 22:53

G4KLB a écrit:Am also getting better results at start of pass now

Nice work Colin....Martin VK6MJ
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Ven 11 Avr 2014 05:58

Last night:

First AOT began with 4.1° elevation( 1960 km). At such low elevation, I have some neighbour houses that cut the stream at the beginning.
Without them, I could receive 8mn also. But they are there... That let me about 6mn of usable TS.
LOT was done at 8.4° elevation (1600 km)
I did not thought we could receive such far range.



Jean Pierre
F6DZP

Messages: 597
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede zg3409 » Ven 11 Avr 2014 22:36



Reports at 2.5 and 4 degrees show the signal can be picked up above 1000KM

Based on the calculations in this document
http://www.amsat.it/Amsat-Italia_HamTV.pdf

The link system was designed for 1000KM range.(with 7dB margin at this range)

However the dish size used was 90cm and downconverter gain was put as 35dB,

In reality the recommended system ends up with:

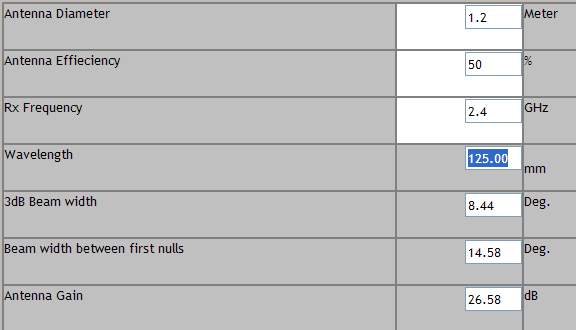

Dish 90cm=24.3dB --> 1.2M (120cm) 26.6dB = +2.3dB
Pre-amp 35dB --> 48dB(my unit typically 40dB) = +13dB (also interference amplified)

With no interference we may have 2.3+13=15.3dB more signal than calculated. We also have the 7dB margin,
meaning at 1000Km we should be 23.3dB above link budget. Reports of signal picked up with an omni directional antenna on a high pass would confirm with low interference noise, the signal is quite strong.

Those calcultions do not take into account things like
-Interference from Wifi or other signals (detected myself up to 60dB above noise)
-Losses from pointing innacuracies, rotator not tracking 100%.
The dish 3dB beamwidth is 8.4 Degrees so we need to point very accurately (+/- 4 degrees total error)
-Cable/connector losses
zg3409

Messages: 8
Inscription: 05 Mar 2014

Re: ISS HamTV Blank transmission report

Messagede vk6mj » Ven 11 Avr 2014 23:08

Thankyou for the previous calculations. I will have a good look at those.
My low angle access to the ISS HAMTV signal is also aided by my location which has very little to block my reception with the exception of 3 trees to my north west. My antenna has this view from the south west to north west. I live on the coast of the Indian Ocean.
Regards Martin
Fichiers joints
vk6mj

Messages: 17
Inscription: 11 Oct 2013
