Your graphic cannot say all what happens, it is not only wifi interferences but also the curve of your down converter noise amplification
that has this graphic.

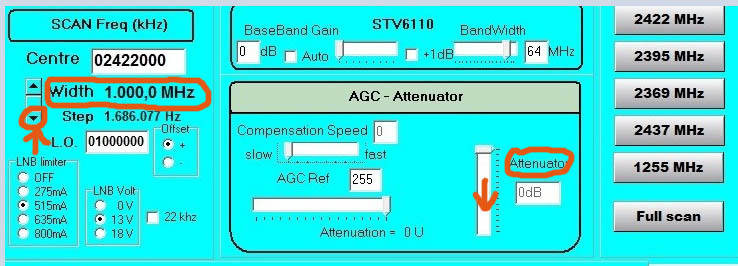

1)You must set Width to 62.5 MHz.We will see better the band we are going to use
just click several times on this button to go down to 62.5 Mhz
- width.jpg (77.18 KiB) Viewed 39738 times
2) you must put attenuation : I think that your down converter has a great gain so you need to
use the attenuator ( -12dB ??) at right
to see the top of the graphic.
About HAmTV
We will have 2 frequencies :2369 and 2395 MHz under 2400 MHz .
Wifi is upper 2.4 GHz so disturb us for 2422 MHz and a little less for 2437 MHz
Saturday HamTV frequency change to 2395 MHz, I think it will be better.
Jean Pierre F6DZP
