TestMyMiniTiouner v0.2a => hardware incompatible

PostPosted: Fri 13 Apr 2018 22:36
by G4KLB
I think I must do a little mod to my MiniTiouner V2.0 for it to be recognised.


Re: TestMyMiniTiouner v0.2a

PostPosted: Sat 14 Apr 2018 05:47
by F6DZP
Hello Colin

Yes, now I must be able to recognize a great familly of different MiniTiouners.
For the MiniTiouner v2, you must add a resistor of 4,7k or 10k between the ground and CN2-19 (or change the Name in the eeprom using FTprog 'MiniTiouner' instead of 'USB <-> NIM tuner' )
after talking with Noel and Brian, they said it was easier for people just to add a resistor.

There is an article about that in the last CQ-ATV:

Automatic hardware detect
Minitioune V0.8 is compatible with all versions of hardware and automatically detects the version of hardware in use – to enable this function to work with the BATC MiniTiouner hardware you need to add a 4.7k or 10k resistor between pin CN2-19 of the USB module and Ground before running the software.

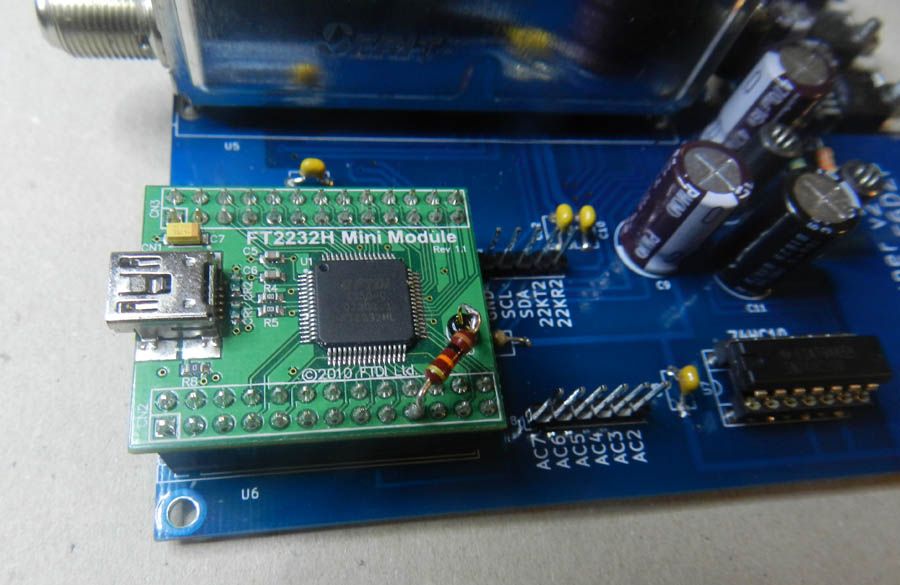

You can do this on the Mini module or on the main PCB as shown in the following pictures:
Resistor for detection of a MiniTiounerV2_.jpg
Resistor for detection of a MiniTiounerV2_.jpg (101.26 KiB) Viewed 2994 times

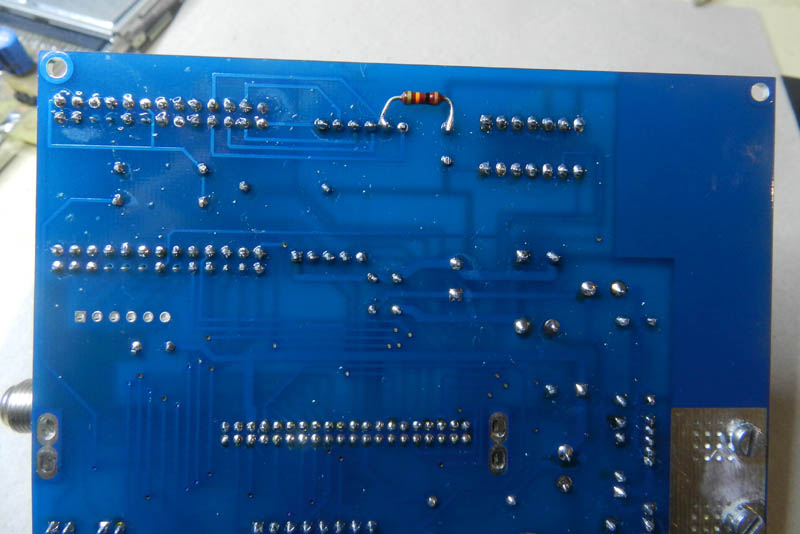

or you can do it under the pcb:
Resistor for detection of a MiniTiounerV2_underPCB_.jpg
Resistor for detection of a MiniTiounerV2_underPCB_.jpg (80.28 KiB) Viewed 2994 times


You must do it also if you want to use the new version 0.8 of Minitioune that will be available very soon.

Jean-Pierre F6DZP

Re: TestMyMiniTiouner v0.2a

PostPosted: Sat 14 Apr 2018 22:39
by G4KLB
Many thanks Jean-Pierre, I suspected this was the case but thought it was worth posting as others would encounter the same issue.
I will add the resistor to all of my V2.0s.

Looking forward to the release of the new version 0.8 of Minitioune.

73
Colin G4KLB
