What graph led RED does mean?

Messagede dj3dy » Jeu 13 Mar 2014 09:59

Hello Jean Pierre,

thank you for the nice program.
I am using tt 2-1600 and your last version for ISS, but the graphic led is red on the right side.
Is this normal or what does it mean ?

vy73 Rudolf, DJ3DY
dj3dy

Messages: 6
Inscription: 29 Oct 2011

Re: What graph led RED does mean?

Messagede F6DZP » Jeu 13 Mar 2014 10:22

Hello,

I suppose your are talking of GRAPH not graphic square LED.

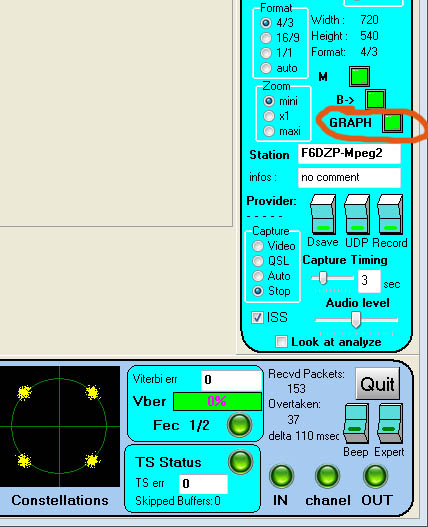

Square Leds Tutioune.jpg
Square Leds Tutioune.jpg (95.86 Kio) Vu 7703 fois


a GRAPH is a structure Windows create for decoding audio and video. If you have a GRAPH squre Led that is RED that means that your Windows installationwill nort be able to decode your TS stream.

There are different explanations:
- you forgot to install usrc.ax
- your computer use WinXP and has not Mpeg2 audio or video decoder installed and you must install one
- the "decod Mpeg2.GRF" file is not in the Tutioune directory.


There is a specific software for testing all that . do it, you will see what happens.
http://www.vivadatv.org/viewtopic.php?f=72&t=262


Jean Pierre F6DZP
Dernière édition par F6DZP le Jeu 13 Mar 2014 12:05, édité 1 fois.
F6DZP

Messages: 666
Inscription: 24 Déc 2010

Re: What graph led RED does mean?

Messagede dj3dy » Jeu 13 Mar 2014 11:23

Hello Jean Pierre,

yes I mean the GRAPH. But it works in the normal program, but not in the ISS beta-program.

Now it is green, I don't have the GRF-file in the right directory . Thank you.

Rudolf, DJ3DY
dj3dy

Messages: 6
Inscription: 29 Oct 2011

Re: What graph led RED does mean?

Messagede dcblahblah » Sam 15 Mar 2014 09:47

Hallo Rudolf,

kurze Frage: Überstreicht die TT S2 1600 Karte einen grösseren Frequenzbereich als bekannte Digital TV Karten ( -2150MHZ ) oder benötigt man hier auch einen down Converter ?
Ich bin am ARISS TV empfang interessiert.

vy 73 Georg DC8GY
dcblahblah

Messages: 4
Inscription: 05 Mar 2014

Re: What graph led RED does mean?

Messagede F6DZP » Sam 15 Mar 2014 19:40

Hallo Rudolf,

S2-1600-Karte kann direkt empfangen 2400 MHz. Aber es ist weniger empfindlich gegenüber dieser Frequenz. Es ist am besten, um eine down converter verwenden.

MfG

Jean Pierre F6DZP
F6DZP

Messages: 666
Inscription: 24 Déc 2010
