How to install Saa7146a driver under Win7 64 bits

Messagede F6DZP » Lun 21 Oct 2013 12:51

Hello,

Windows 7 64 bits does not accept driver that have not verified digital certificate.
So, when a driver has been developed by a no professional company, no money to give to Microsoft to get a certification.

this is the case of the driver we need to install : SAA7146A.SYS

I have found the solution : use DSEO (Driver Signature Enforcement Overrider)
you can find it here:
http://www.ngohq.com/?page=dseo

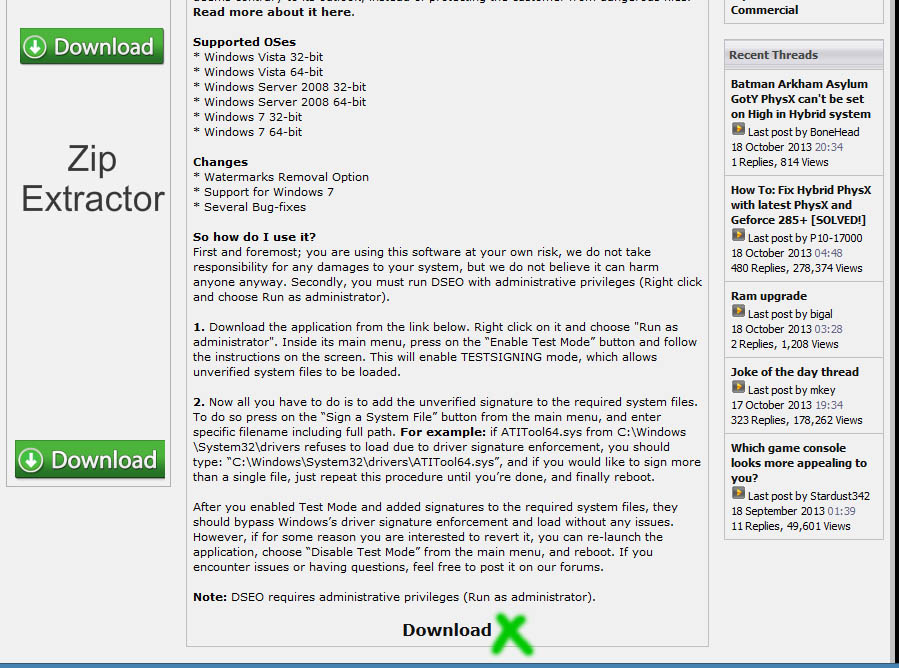

click on DOWNLOAD at the bottom of the page ( if you don't want to download anything you don't need).
dseo download1.jpg
dseo download1.jpg (221.89 Kio) Vu 22058 fois

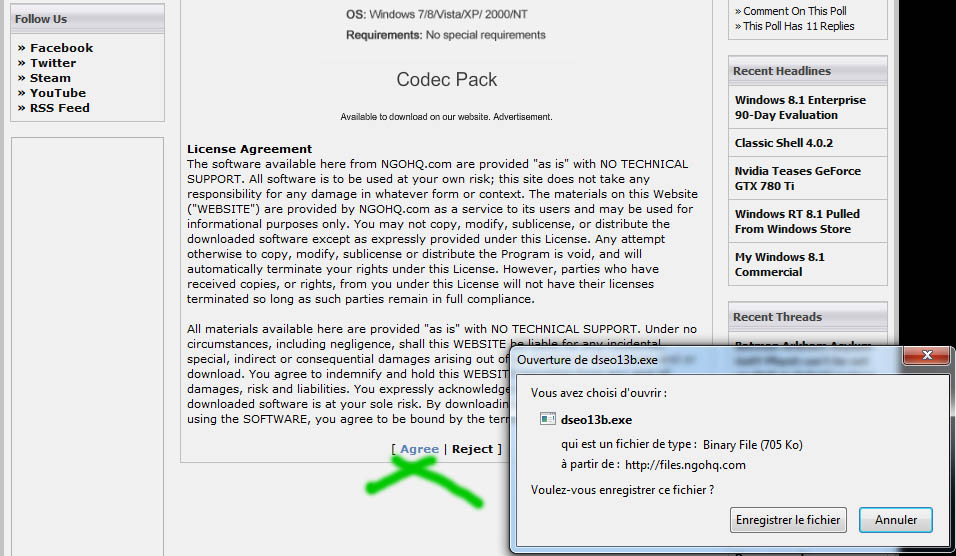

you will go to a second page, go to the bottom and click <Agree>
dseo download2.jpg
dseo download2.jpg (172.62 Kio) Vu 22058 fois


now you have the file dseo13b.exe on your hard disk.

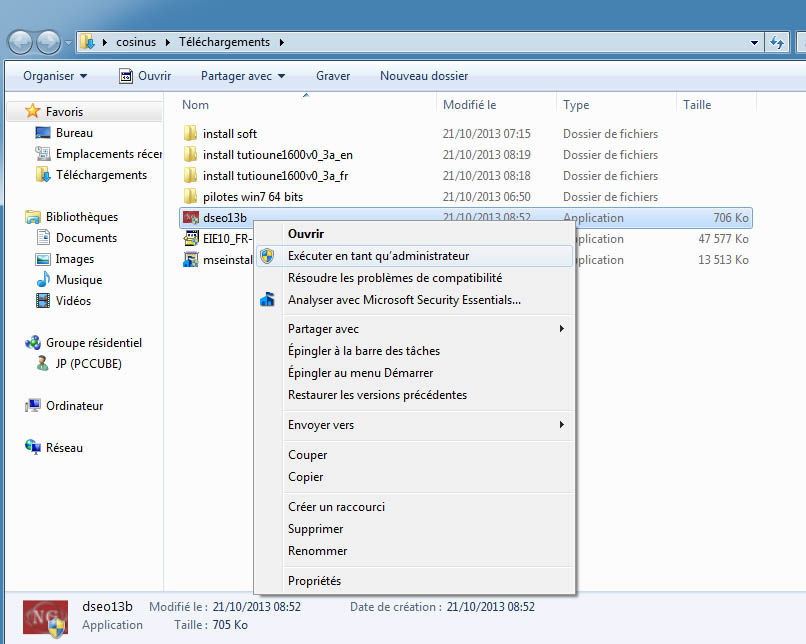

click right on this file and ask to "Run as administrator"
dseo etape1.jpg
dseo etape1.jpg (117.66 Kio) Vu 22058 fois

( sorry my win7 is in French so you will see some sentences in French...)

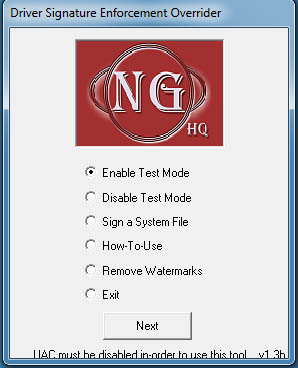

you will get the first DSEO panel :
dseo etape2.jpg
dseo etape2.jpg (46.22 Kio) Vu 22058 fois

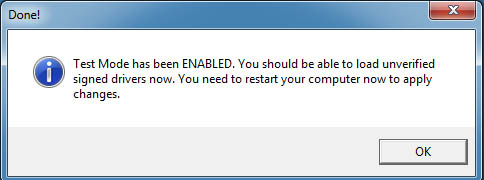

chose : "Enable Test Mode" and click Next.
dseo etape3.jpg
dseo etape3.jpg (35.48 Kio) Vu 22058 fois

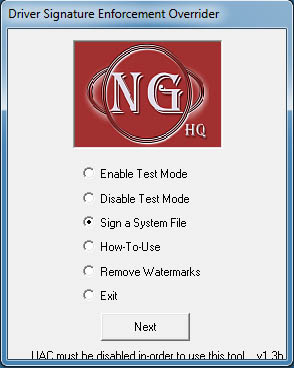

click OK an on the DSEO panel chose : "Sign a system file"
dseo etape4.jpg
dseo etape4.jpg (45.36 Kio) Vu 22058 fois

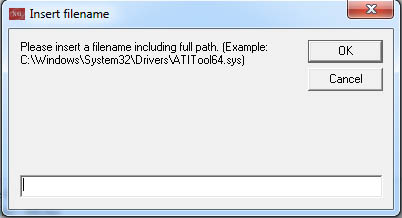

DSEO ask you the complete address of your file starting from C:\...

dseo etape4 bis.jpg
dseo etape4 bis.jpg (31.11 Kio) Vu 22057 fois


we must find it, for that I go in the directory where it is : "Driver saa7146a 64-bit" and I must get the complete way to it.

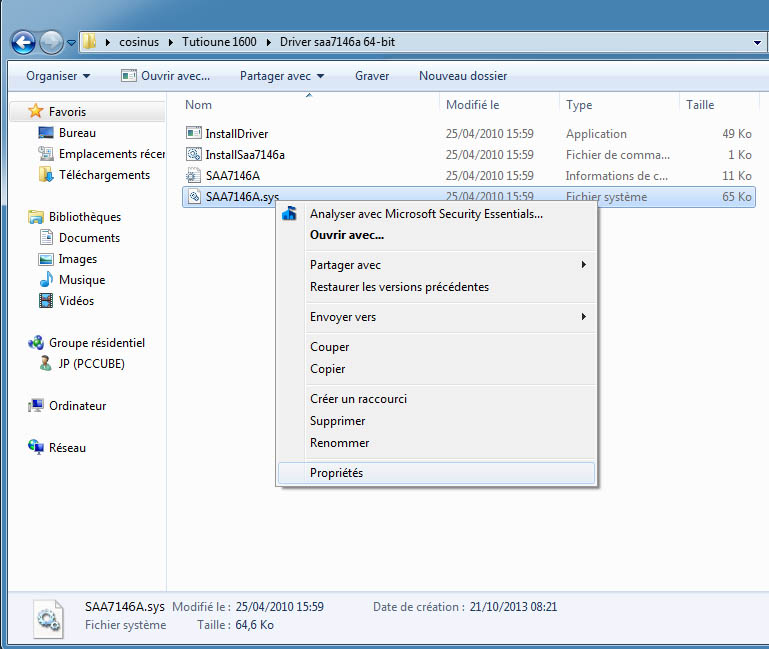

I click right on it
dseo etape5.jpg
< sorry for French sentences>
dseo etape5.jpg (104.36 Kio) Vu 22058 fois

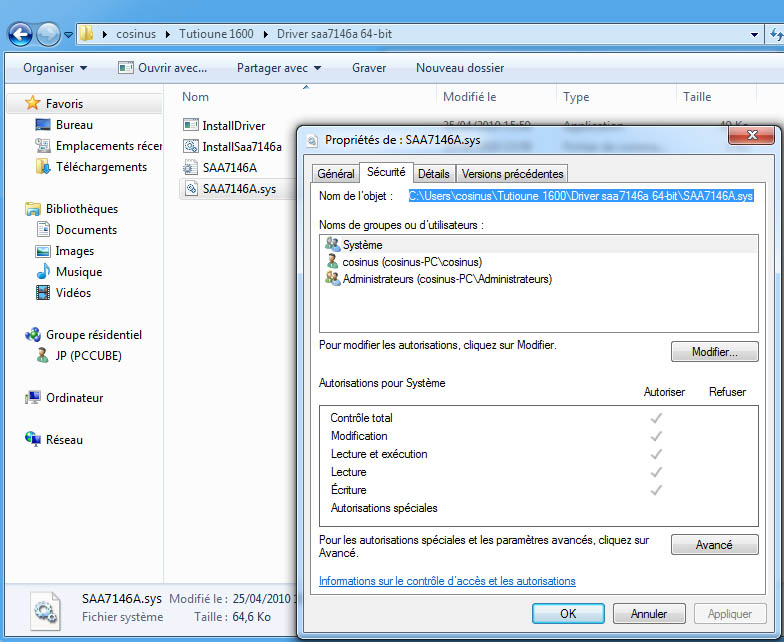

ask at the bottom for proprietaries
dseo etape6bis.jpg
dseo etape6bis.jpg (133.89 Kio) Vu 22058 fois

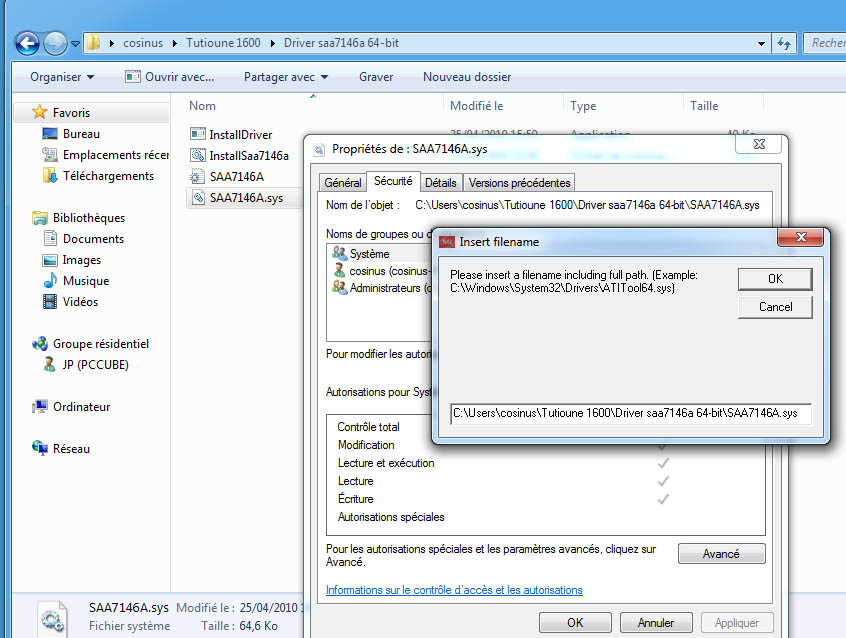

select with your mouse the complete address and copy it (CTRL+C)

go back to the DSEO question and put the address (CTRL+V).
dseo etape7.jpg
dseo etape7.jpg (139.63 Kio) Vu 22058 fois

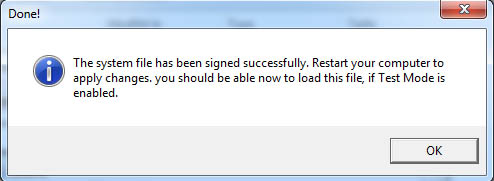

you will obtain an answer of success:
dseo etape8.jpg
dseo etape8.jpg (35.96 Kio) Vu 22058 fois


Reboot your computer.

After reboot, you will see this announcement at right-bottom of windows screen
dseo etape8 after reboot.jpg
dseo etape8 after reboot.jpg (19.98 Kio) Vu 22058 fois



Now we can install the saaa7146A driver.

we cannot use the batch file to run the installation procedure. We must do it "by hand"
For that we will use the "Command Prompt" in Admistrator Mode
go to Start Menu > all programs, Accessories , right clicking Command Prompt and select "Run as Administrator"

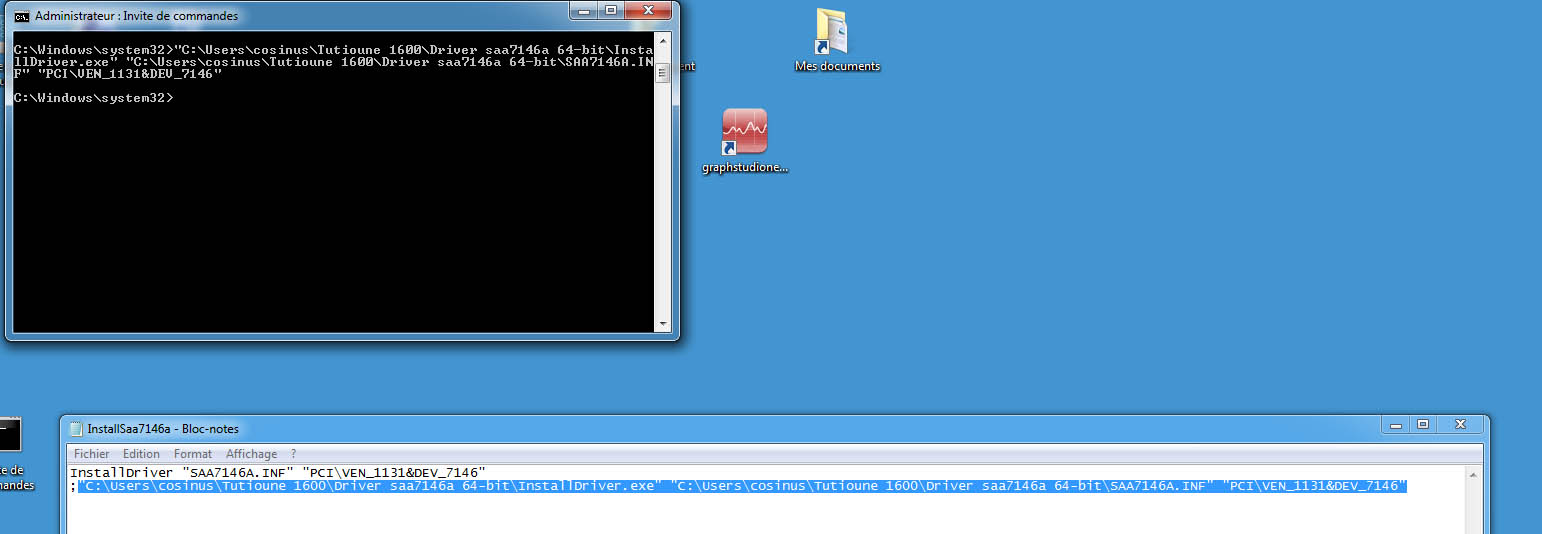

we must write the whole sentence to install the driver using the "" characters :
"C:\ .... include full path \installdriver.exe" "C:\ ..include full path .. \SAA7146A.INF" "PCI\VEN_1131&DEV_7146"
on my computer I must write:
"C:\Users\cosinus\Tutioune 1600\Driver saa7146a 64-bit\InstallDriver.exe" "C:\Users\cosinus\Tutioune 1600\Driver saa7146a 64-bit\SAA7146A.INF" "PCI\VEN_1131&DEV_7146"
( I copied this sentence from my installSaa7146a.bat file)

dseo etape9.jpg
dseo etape9.jpg (99.39 Kio) Vu 22058 fois


just after you execute this prompt, Windows open a panel to ask you to confirm to install this driver.

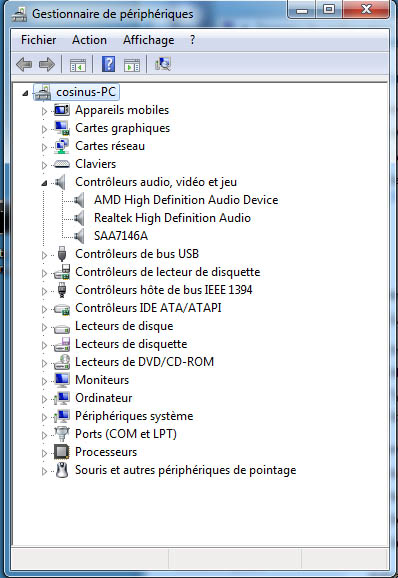

And now you can look at the Device Manager and see that SAA7144A driver is installed.

dseo etape10 FIN.jpg
dseo etape10 FIN.jpg (83.99 Kio) Vu 22058 fois

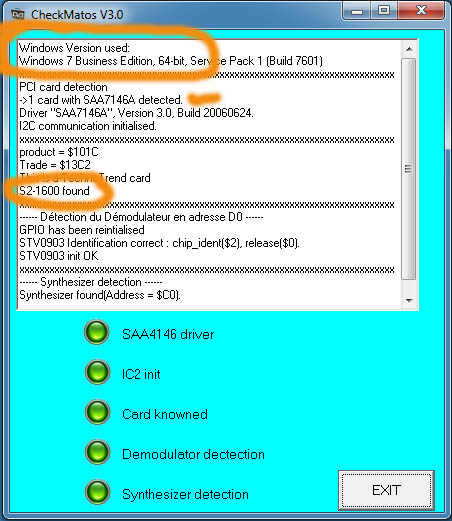

and if you run CheckMatosV3.0 you will find that all is OK, all LEDs are GREEN!!!

CheckMatosV3_0 win7 64 bits.jpg
CheckMatosV3_0 win7 64 bits.jpg (94 Kio) Vu 22057 fois



Good installation!

Jean Pierre F6DZP
F6DZP

Messages: 696
Inscription: 24 Déc 2010

Re: How to install Saa7146a driver under Win7 64 bits

Messagede vk6mj » Jeu 24 Oct 2013 04:52

Merci Jean Pierre

I have tried most of your solution and will study it some more. I have since reinstalled a 32 bit version of Windows 7 and had no trouble getting the driver to install.

The rendering video problem was a motherboard vga issue and the wrong vga driver was installed. I have fixed that now and it is all up and working.

I will at a later date reinstall the 64 bit OS and follow your instructions.

73
Martin VK6MJ
vk6mj

Messages: 17
Inscription: 11 Oct 2013

Re: How to install Saa7146a driver under Win7 64 bits

Messagede HB9FGJ » Lun 9 Déc 2013 22:12

Bonjour Jean Pierre,

Luca HB9FGJ in Féchy, Vaud (Suisse) here.

I am trying to install the SAA7146 driver in my Win7 32 bit installation but the installation fails with this message:


I have tried with the BDA driver, and the card (a TT S2-3200) works well with TT-Viewer.

Here is the Device Manager with the PCI IDs, which seem to be correct:


I have also tried with the DSOE trick (though I am on 32 bits) and even in test mode the driver cannot be loaded as, apparently, the card is not found by the driver installer.

Any idea on what might be the issue?

Merci et 73 de Luca HB9FGJ
HB9FGJ

Messages: 1
Inscription: 28 Juil 2013
Localisation: Fechy, Switzerland JN36EL

Re: How to install Saa7146a driver under Win7 64 bits

Messagede F6DZP » Ven 7 Mar 2014 11:21

You must un-install the BDA driver before install SAA7146a driver.
Installing driver under win7:

If we cannot use the batch file to run the installation procedure, We must do it "by hand"
For that we will use the "Command Prompt" in Admistrator Mode
go to Start Menu > all programs, Accessories , right clicking Command Prompt and select "Run as Administrator"

we must write the whole sentence to install the driver using the "" characters :
"C:\ .... include full path \installdriver.exe" "C:\ ..include full path .. \SAA7146A.INF" "PCI\VEN_1131&DEV_7146"

on my computer I must write:
"C:\Users\cosinus\Tutioune 1600\Driver saa7146a 64-bit\InstallDriver.exe" "C:\Users\cosinus\Tutioune 1600\Driver saa7146a 64-bit\SAA7146A.INF" "PCI\VEN_1131&DEV_7146"
( I copied this sentence from my installSaa7146a.bat file)

Jean Pierre F6DZP
Dernière édition par F6DZP le Dim 6 Juil 2014 17:02, édité 1 fois.
F6DZP

Messages: 696
Inscription: 24 Déc 2010

Re: How to install Saa7146a driver under Win7 64 bits

Messagede G8YTZ » Lun 30 Juin 2014 20:46

Dear Jean Pierre,

I have just upgraded my PC from Vista 32 Bit to W & 64 Bit on a new SSD rive. I can still dual-boot the PC. I have done everything above, but without success - I have a yellow ! triangle on the driver and the check driver application does not detect the card.

Any ideas?

Justin G8YTZ

PCI card detection
->No SAA7146A driver and/or card detected
G8YTZ

Messages: 4
Inscription: 09 Sep 2012
Localisation: London

Re: How to install Saa7146a driver under Win7 64 bits

Messagede G8YTZ » Lun 30 Juin 2014 20:48

Oh,

my card is: "TechnoTrend TT budget S2-3200 DVB-S 2 PCI"
G8YTZ

Messages: 4
Inscription: 09 Sep 2012
Localisation: London

Re: How to install Saa7146a driver under Win7 64 bits

Messagede F6DZP » Dim 6 Juil 2014 17:07

You can detect the card (S2-3200 or S2-1600) only after successful installation of SAA7146A driver.
I cannot say more about your Win7 upgraded from Vista. Perhaps there is a specific way to do it in this case?
Do you have Win7 in mode test? this is the first thing to obtain.

Jean Pierre F6DZP
F6DZP

Messages: 696
Inscription: 24 Déc 2010

Re: How to install Saa7146a driver under Win7 64 bits

Messagede registrad » Dim 28 Déc 2014 09:59

Tanks. Jean Pierre.
I have installed the driver,
but I think this card has a problem.

Verifmafos says:

Version de Windows utilisée:
Windows 7 Ultimate Edition, 64-bit, (Build 7600)
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Détection des cartes PCI
->Une carte avec pilote SAA7146A detectée.
Driver "SAA7146A", Version 3.0, Build 20060624.
Communication I2C initialisée.
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
erreur à la lecture du Registre $3C de l'adresse $A0


And the last three checks are in red.
registrad

Messages: 3
Inscription: 27 Déc 2014

Re: How to install Saa7146a driver under Win7 64 bits

Messagede registrad » Dim 28 Déc 2014 10:15

After restart i receive this VerifMatos information:

Version de Windows utilisée:
Windows 7 Ultimate Edition, 64-bit, (Build 7600)
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Détection des cartes PCI
->Une carte avec pilote SAA7146A detectée.
Driver "SAA7146A", Version 3.0, Build 20060624.
Communication I2C initialisée.
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
produit = $101C
Marque = $13C2
c'est une carte TechnoTrend
c'est une S2-1600
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
------ Détection du Démodulateur en adresse D0 ------
GPIO du 7146a a été réinitialisé avec jonction Démodulateur
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
------ Détection du Synthétiseur ------
Détection RATEE du Synthetiseur -> I2C NACK: Error in address phase


and now only 2 checks are in red.

Thanks.
registrad

Messages: 3
Inscription: 27 Déc 2014

Re: How to install Saa7146a driver under Win7 64 bits

Messagede F6DZP » Lun 29 Déc 2014 07:55

Hello,
Your card or your PC bus timing seems to have a problem.
Could you check if your card is well put in the PCI slot?
It seems they are data transfer issues, we cannot read at each time data coming from the card.

You could check also using Technotrend BDA driver and standard windows software.

Jean Pierre F6DZP
F6DZP

Messages: 696
Inscription: 24 Déc 2010
