ISS HamTV Blank transmission report

Messagede F6DZP » Lun 10 Mar 2014 16:13

Hello,
In this discussion we could put all of us our observations and report about tracking HamTV blank transmission.

Freq = 2422 MHz - SR1300 - using 1m20 dish, Kuhne down converter and TT S2-1600

Today I chose 3 passes over France, I give local time ( = UTC+1):

==> 9h33 max elevation : 50.6° at 9h36

I have well received and recorded the black video during about 4 mn from 9h34 to 9h38 but forgot to click the record data and record TS buttons before this pass.( I was too much excited...)
so I started to record 1 sec after AOS
LOS was made when ISS was at a distance more than 1000 km

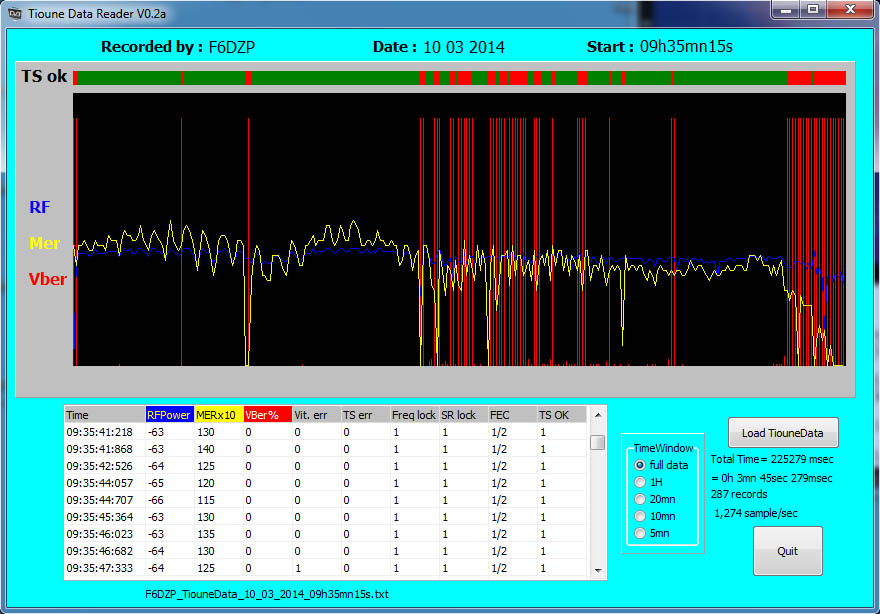

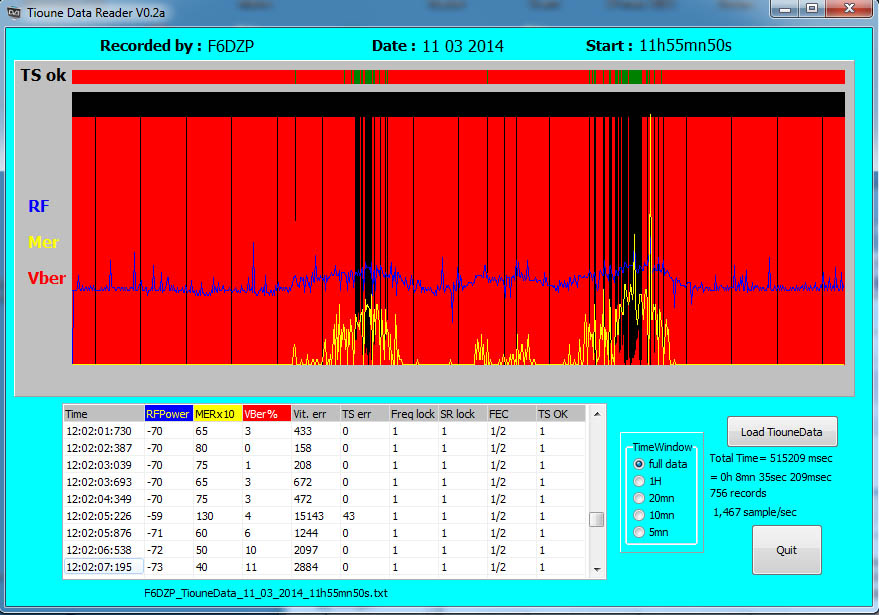

the tiouneData give this result:


In the top of the graphic, the "TS OK" line show when we receive good TS : it is green, and red when not. That show quicly the result of the pass

little vertical red line in the big graphic show Wifi interferences that make lost 1 packet (188 bytes).

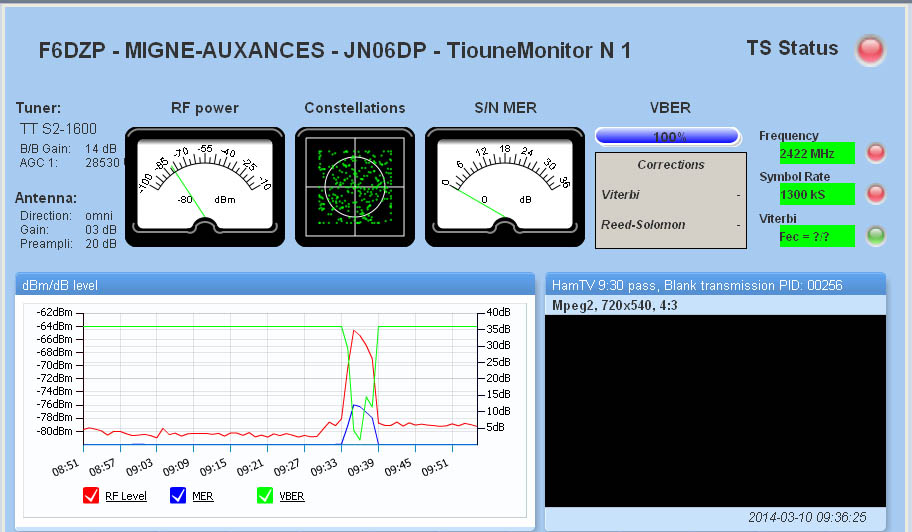

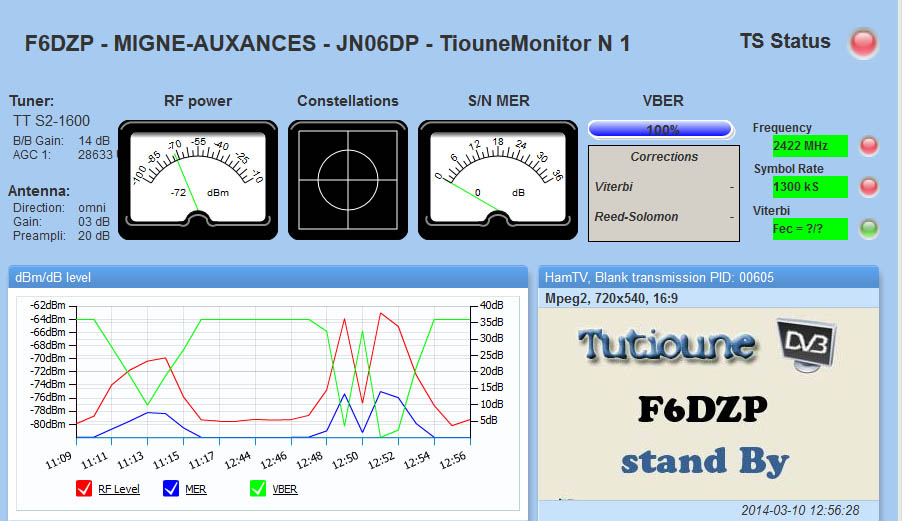

the TiouneMonitor could be observed:
F6DZP tiounemonitor 10_03_2014_9h33.jpg
F6DZP tiounemonitor 10_03_2014_9h33.jpg (132.83 Kio) Vu 10685 fois


==> 11h11 max elevation 32.9°

I received and decode the video but with some cut in the signal due to Wifi interferences in a lower signal.
the tiouneMonitor show that at right of the graphic . ( video is OK at a MER> about 5dB)

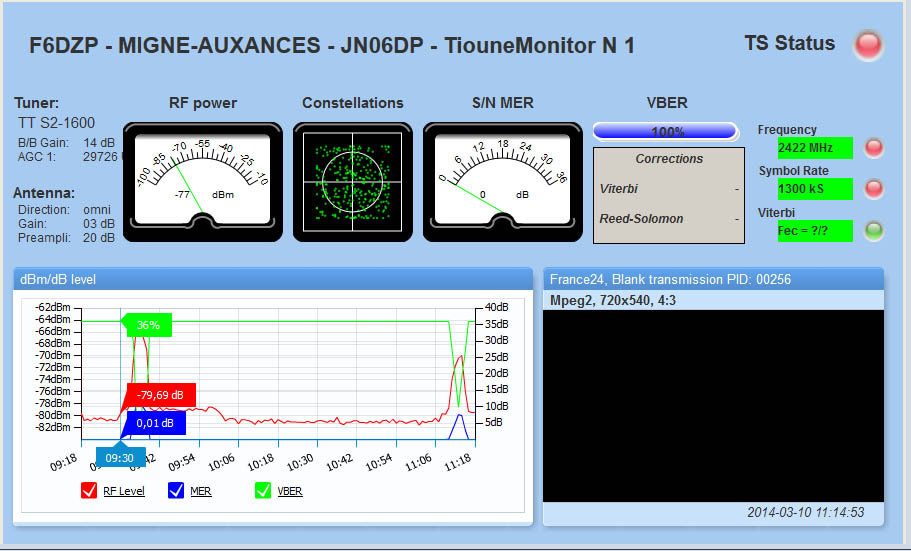

F6DZP tiounemonitor 10_03_2014_9h33 and 11h11.jpg
F6DZP tiounemonitor 10_03_2014_9h33 and 11h11.jpg (133.38 Kio) Vu 10685 fois



==> 12h48 max elevation 63.5°
I started to receive good video at 12h48:56 and stop to receive at 12h53:27 so during about 4mn30sec
but in the middle of the pass, when the dish was high, it turned suddenly by south, and the pass was by North! so I lost some time to recover the video.
This is a bug in the tracking software.
When I lost the video, ISS was at 1400 km and I continue to receive some burst of video until 1500 km
We can see the red part in the middle of the pass: I lost signal because a bug in the tracking software

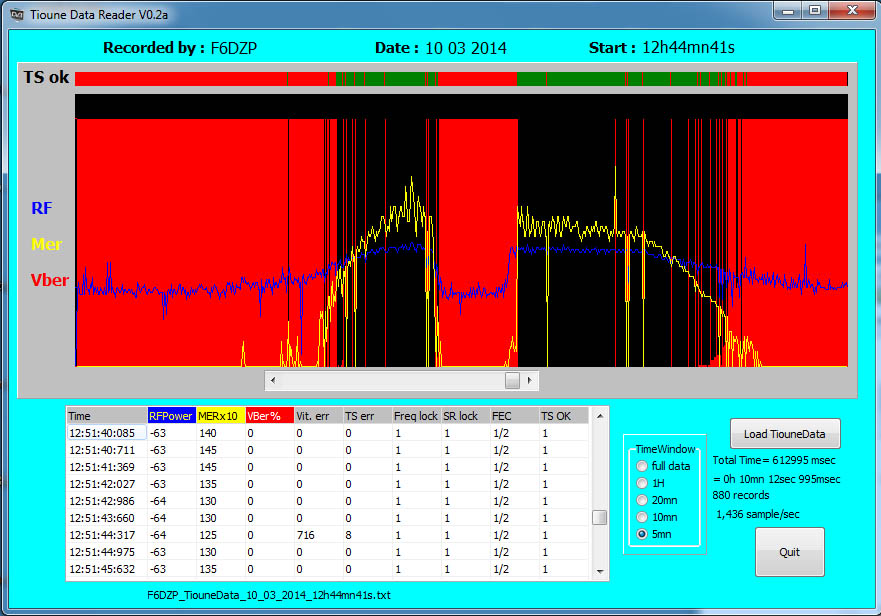

the tiounemonitor:
F6DZP tiounemonitor 10_03_2014_12h48.jpg
At 12h50 I lost signal due to AZ rotor turning 180° by south for a North pass.
F6DZP tiounemonitor 10_03_2014_12h48.jpg (126.6 Kio) Vu 10685 fois


That 's all for today.

Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Mar 11 Mar 2014 10:43

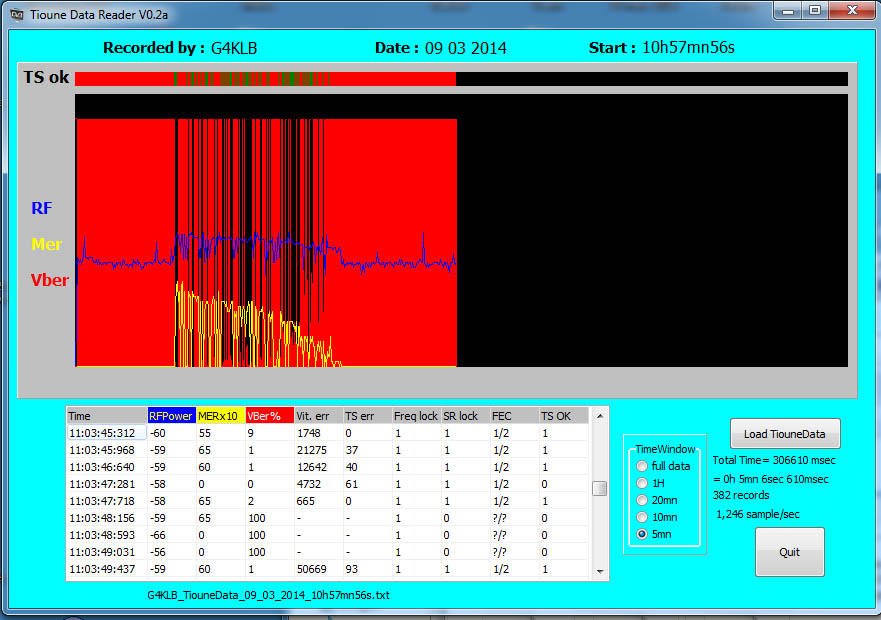

Today I have received 2 reports from IK1SLD

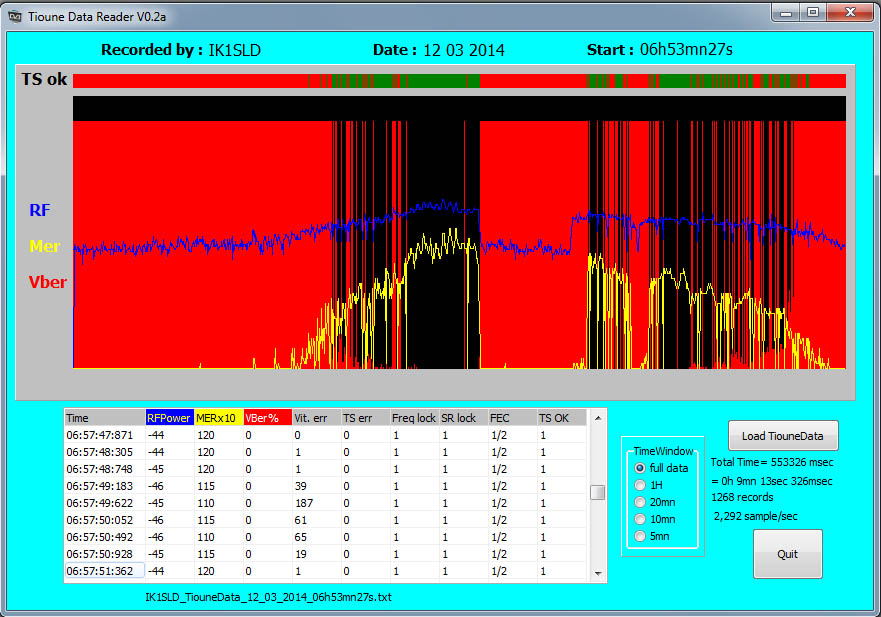

First was taken the 09_03_2014 :

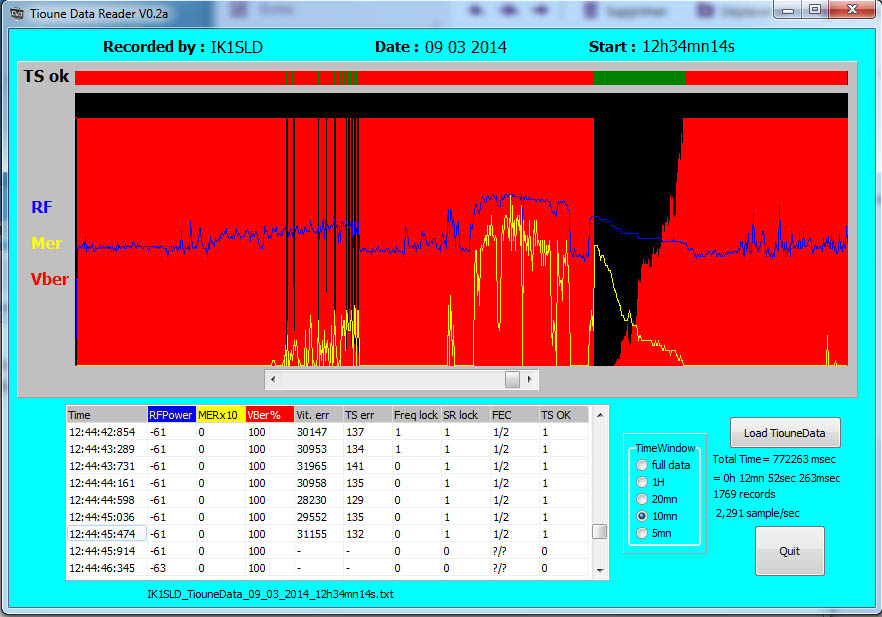

We can see that some packets arrived early but after a while a big stop (Red zone) some interferences or signal masked by some building..? and suddenly he received a good signal from 12h43:24 to 12h44:46.

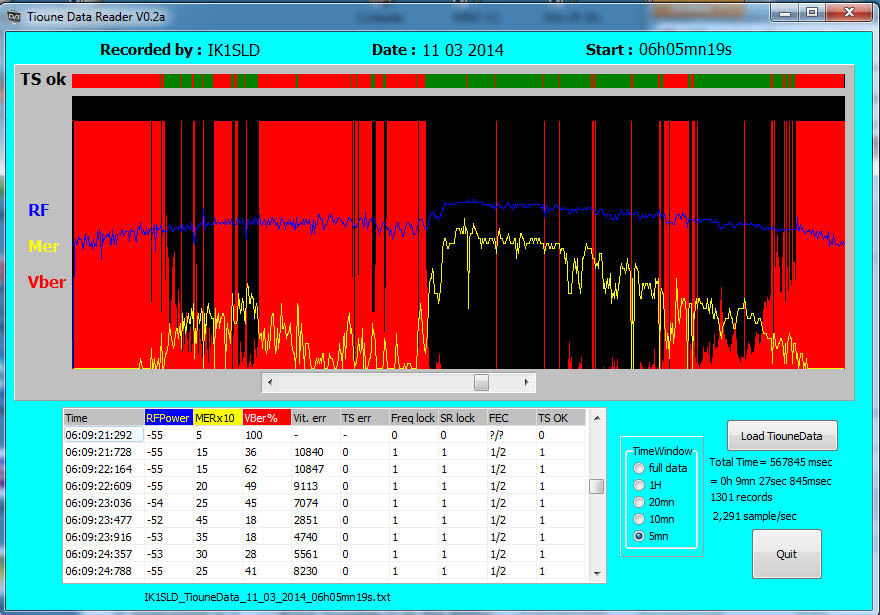

Second report is for today 11_03_2014 at 6h05:



There are 4mn 37 between AOV (Acquisition Of Video) and LOV (Lost Of Video) looking at the TS OK green part.
from 06h09:22 to 06h13:57
with I suppose some lost of packets due to WIFI interferences I suppose.

Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Mar 11 Mar 2014 13:31

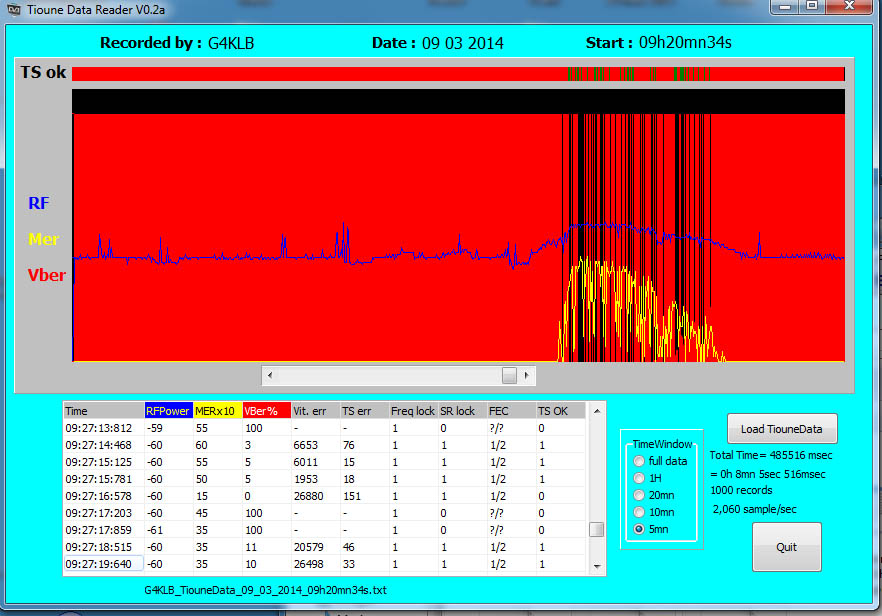

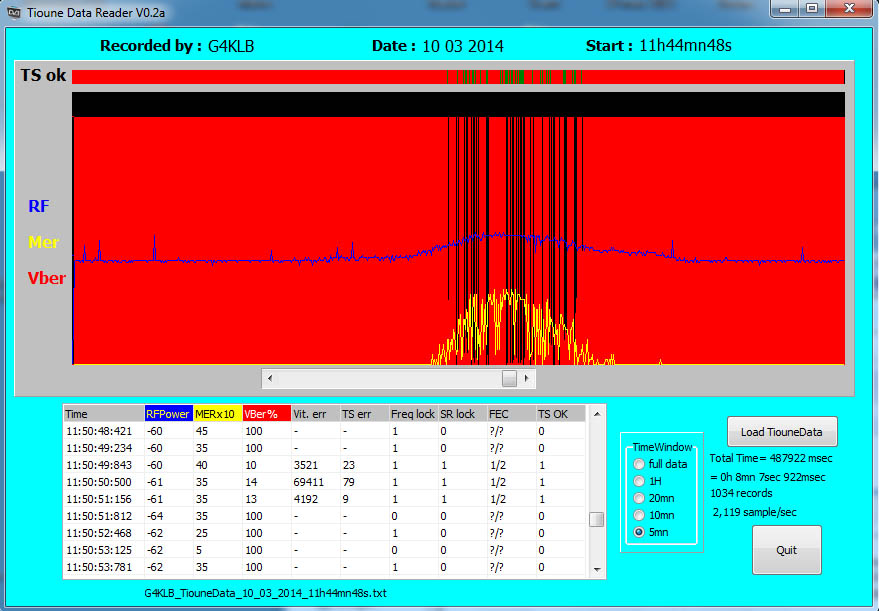

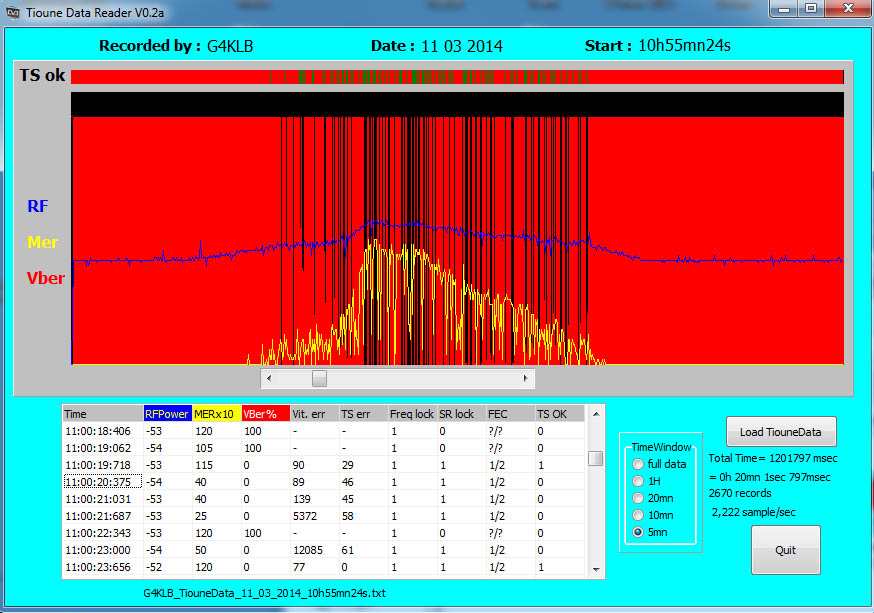

News from Colin Watts G4KLB

He can receive some TS packets but often with bad values, he seems to have difficulties to get a strong signal and impeach Wifi interferences.









Thank you for these reports.

Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Mar 11 Mar 2014 13:45

My last tests today.

Not very beautiful but with the last path I got video until a distance of 1700 km with 7° elevation , last packets arrived at 5.6°with 1800 km distance.

I know I have to fix my elevation calibration ratio,, I have made some tests and modifications this morning testing new Wispdde without the "180°_south_turn_bug" try other thing, so my elevation calibration is no more good, I cannot keep the signal when elevation rise to high. So as you can see I geyt the signal at the beginning of a pass, lose it in the middle and get it again at the end.
I have also a Tree that makes some disturbing results at the beginning.

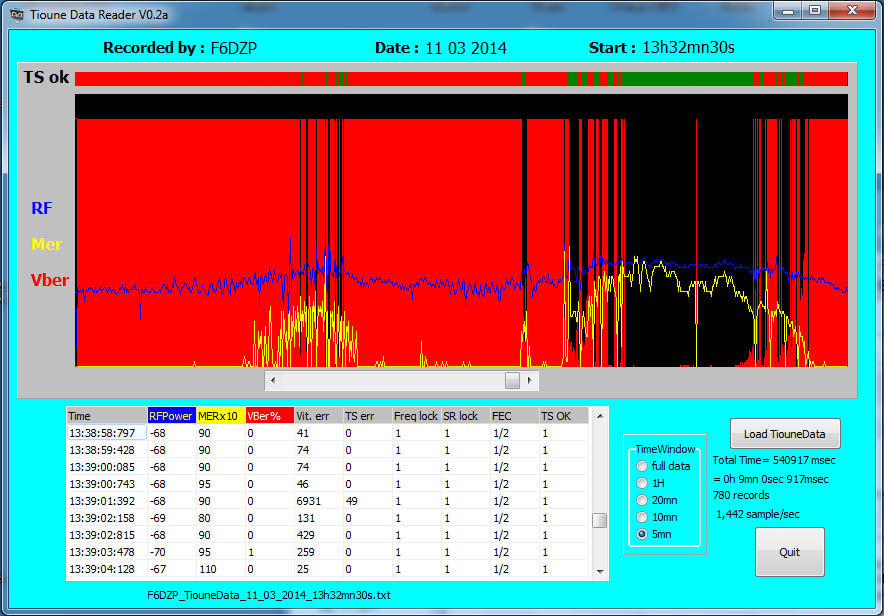

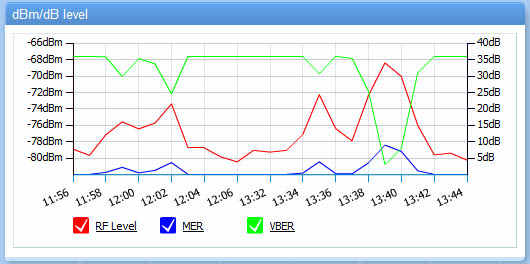

F6DZP tiounemonitor 11_03_2014_11h 57 and13h33.jpg
F6DZP tiounemonitor 11_03_2014_11h 57 and13h33.jpg (57.06 Kio) Vu 10674 fois






So by my side I have made a very good discovery by knowing now that , if the tracking is very well done, the wifi interferences not too strong and the antenna not disturbed by obstacle, I could receive with an elevation down to 7° with a distance of 1700 km.
But many work remain to do.

Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010

ISS HamTV Blank transmission report

Messagede hb9dug » Jeu 13 Mar 2014 06:33

Bonjour Jean Pierre,

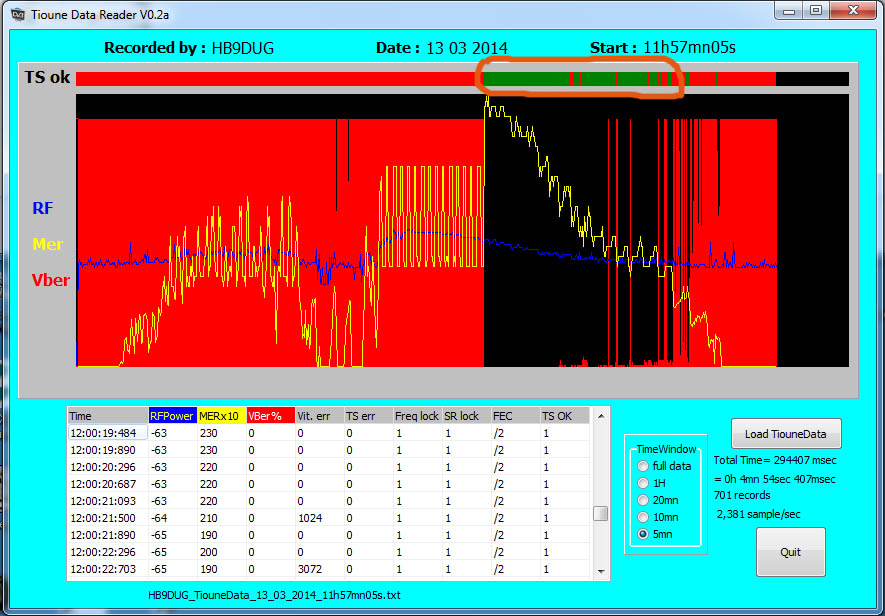

Je ne trouve pas Le soft Tioune Data Reader. Est-il disponible sur Viva DATV.

73's qro de michel hb9dug
hb9dug

Messages: 2
Inscription: 11 Mar 2012

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Jeu 13 Mar 2014 09:11

TiouneDataReader is in the package when you download Tutioune1600 full installation package. ( see vivadatv download section)

or can be downloaded here :
http://www.vivadatv.org/viewtopic.php?f=60&t=290

Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Ven 14 Mar 2014 17:00

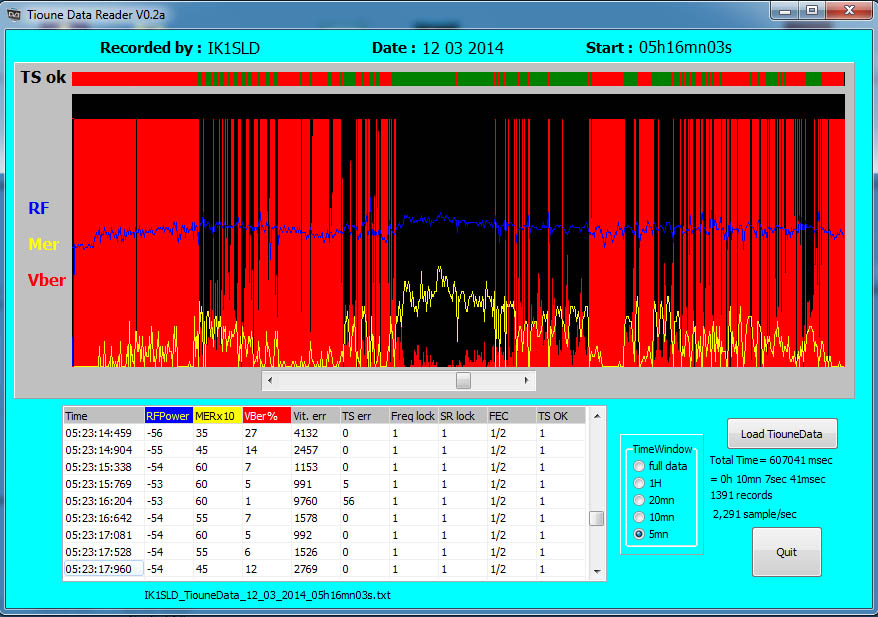

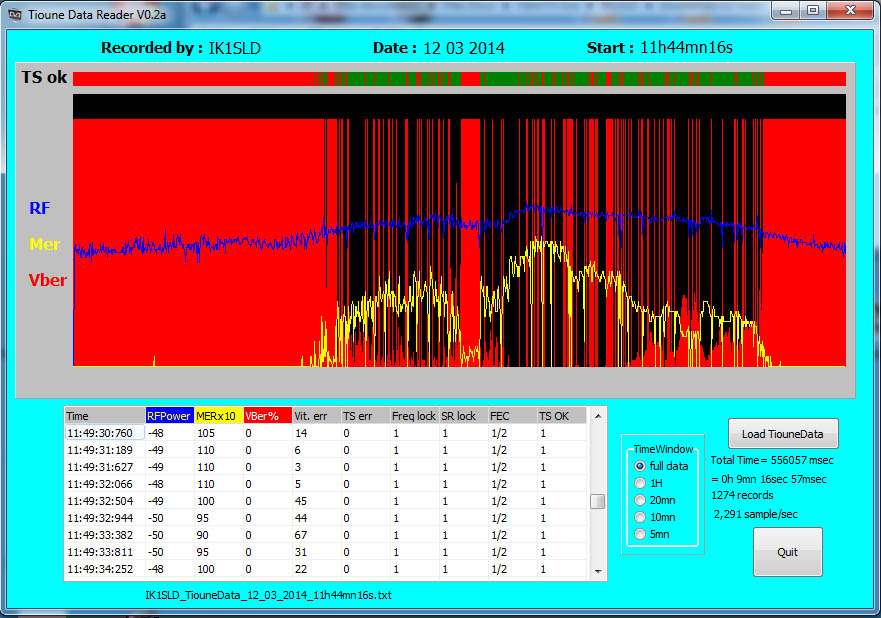

New reports from IK1SLD.
Thank you.





F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Ven 14 Mar 2014 21:20

Et un petit rapport de Michel.
Bravo pour cette réception réussie et merci pour ce rapport. Freq 2422 MHz
Dernière édition par F6DZP le Lun 17 Mar 2014 08:06, édité 1 fois.
F6DZP

Messages: 591
Inscription: 24 Déc 2010

Re: ISS HamTV Blank transmission report

Messagede JA1OGZ » Lun 17 Mar 2014 05:58

I was recived from ISS HAMTV only for two minutes. frequncy is 2395MHz.
Fichiers joints

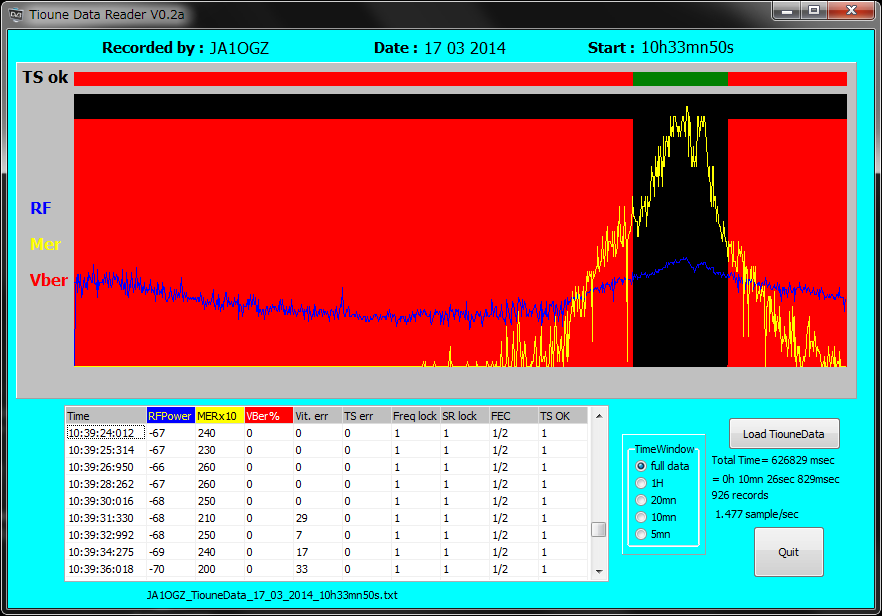

HAMTV 20140317 0134 UTC.png
Mar. 17 UTC 01:34 01:44
HAMTV 20140317 0134 UTC.png (60.7 Kio) Vu 10417 fois
JA1OGZ

Messages: 1
Inscription: 26 Juil 2013

Re: ISS HamTV Blank transmission report

Messagede F6DZP » Lun 17 Mar 2014 08:04

Hello,

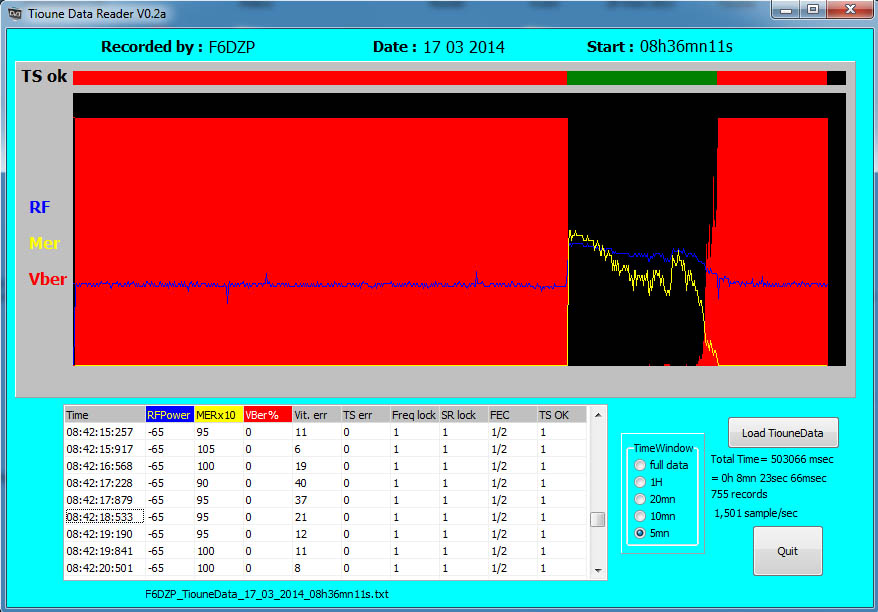

Today for the first time I have received the new frequency : 2395MHz. No more Wifi interferences.
But :( I forgot to plug the usb cable for tracking system... I do It in the middle of the pass and immediately a beautiful signal without interferences.



Jean Pierre F6DZP
F6DZP

Messages: 591
Inscription: 24 Déc 2010
